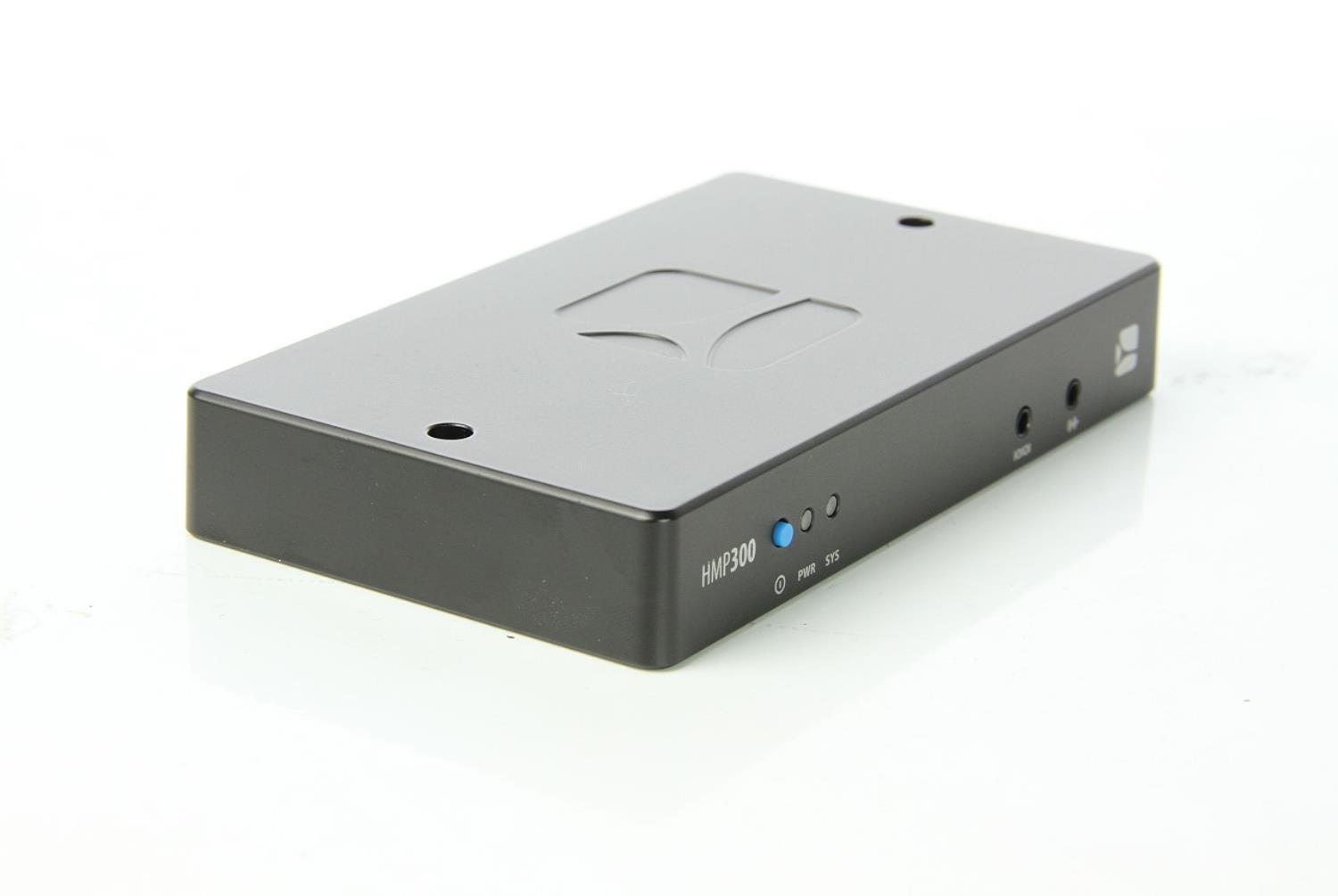

SpinetiX Hyper Media Player HMP300 - Digital Signage
Der HMP300 ist ein kompakter FULL HD hochleistungs Mediaplayer für 24/7 Betrieb. Media Software Fusion im Player integriert. - keine Lizenzkosten
HMP300 - Der Player mit optimalem Preis-/Leistungsverhältnis
- Sehr sparsam, nur 8 Watt Energieverbrauch
- Texte, Animationen, Bilder und Newsticker ruckelfrei wiedergeben
- Optimiert für Elementi S und M 2015
- Die ideale Lösung für die häufigsten Anwendungen
Beinhaltet: 1 Stk. HMP300-Player, Netzteil
Digital Signage Player Spinetix HMP300 der neuesten Generation
Ideal für maßgeschneiderte Lösungen
Vektorbasierende Multi-Layer Grafikengine DaVinci
Contenterstellung über eingebautes webbasiertes Tool, oder über Elementi DigitalSignage Software
Ausgabeauflösung: 1920 x 1080 pixel, FullHD
- Maße BxHxT: 150 x 23 x 86,5 mm
Achtung: Abbildungen können von dem aktuellen Produkt abweichen
Technische Daten▲
Connectors & Ports
Video : HDMI
Audio : Line level, stereo
Serial port : RS232, 115200 Bd max., mini-jack 3.5mm (power on/off)
USB port : 2x USB 2.0
Network : Ethernet 1GbE, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az
Power Supply : Input: 100-240V, 50-60Hz, Output: 5V DC 3.6A max.
Size &Weight :
Width: 5.9 / 150mm, Height: 0.9 / 23mm, Depth: 3.4 / 86.5mm
Weight : 12.3oz / 350g
Player Engin e
Layer composition
Multi-layer, Elementi layout, apps
Animation
Built-in playouts, apps, Elementi playlists, transitions, effects
Text
Unicode support (international text), Bidirectional (right-to-left,left-to-right)
Fonts
TrueType, OpenType user fonts, built-in fonts (Western, Cyrillic,Arabic, Greek, Hebrew, Chinese, Japanese, Korean, Thai, Hindi, etc.)
Interactivity
USB input devices (touch screen, keyboard, mouse, presenter, barcode scanner, etc.)
Description languages
SVG Tiny 1.2+, Canvas, SMIL Animations, iCalendar (RFC2445)
Scripting language
JavaScript (ECMAScript 5), jSignage' (jQuery, Layers, Graph, QRCode, etc.), WebStorage, XMLHttpRequest, Node.js
External data access
AJAX, REST, HTTP, raw TCP/UDP
Formats
Images
JPEG, PNG, GIF, SVG
Media file formats
MPG, M P4, M4V, M4A, MOV, MKV, M KA, WMV, WMA, AVI, VOB, TS, MP3, AAC, WAV
Video coders
Multi-video decoding capable, 1080p max, H.264/MPEG-4 AVC: HP@L4, H.264/MPEG-4 AVC: HP@L4, MPEG-2: MP@HL, MPEG-4: ASP, WM9NC-1: AP@L3
Audio coders
AAC-LC, HE-AAC, MPEG Layer I, II, III (MP3),WMAv2, AC3
Data feeds
Built-in RSS app, Elementi feeds RSS, ICS, CSV,TXT, custom feeds (XML,JSON,JavaScript)
Display
Aspect ratio
16:9,16:10, 4:3 (horizontal, vertical)
Resolution
1080p (1920x1080), 720p (1280x720), XGA (1024x768), VGA (640x480) at 50/60 Hz, etc.
Power on/off
Serial port (simple protocol), DVI, HDMI-CEC
Protocols
DHCP, static IP, Zeroconf, IPv4, IPv6, NTP, Bonjour, SNMPv1/v2c,HTTP, WebDAV
Remote configuration
Built-in HTTP server, RPC
Content transfer
Web browser upload, live web server, scheduled download, direct upload, USB stick
Storage
Internal
8GB solid state
External
Flash drive, hard disk (via USB 2.0)
Characteristics
Processor
DaVinci DM8148 (ARM Cortex-A8 Core 1GHz)
Memory
RAM: 1 GB, DDR3-1066, Bandwidth: 4.3GB/s
Power consumption
8W
Operating conditions
Ambient temperature 32 -104°F / 0 - 40°C
Relative humidity 10-90% noncondensing
Altitude 10,000ft / 3,000m max.
Storage temperature -4- 122°F / -20 - 50°C
Real-time clock (RTC)
Accuracy b11 min./month, backup by supercap (40 days)
Tools
Built-in web-based content creation and scheduling tools
Warranty
3 Year limited Hardware Warranty
