Linsn EX901D Multi Function LED Card adjust the brightness automatically

EX901D Features: Linsn EX901D Multi Function LED Card adjust the brightness automatically,EX901 LED Card for led screen power on/off

• Integrated audio signal transmission, no external audio amplifier line, direct access function card;
• 256 grade automatic brightness adjustment;
• Monitoring led screen temperature and humidity in Real-time ;
• Displaying the current temperature and humidity on led screen;
• Smoke detection,(need to install the smoke probe);
• Power On/Off the power of led screen remotely;
• Control the led screen's fan and air-conditioning switcher automatically through the temperature

Compatible with all LINSN 8xx series sending cards. For use with 9xx sending card order the LINSN EX902 multi function card .

• 12 pcs HUB75 of 16P interface,Hub card is no need anymore.
• support 12-bit color HDMI inputs (need to send cards with nine generations)
• using 18 signal processors, maximum support RGB each 18 (260,000) gray
• single card maximum support 1024X256 pixels, 1,024 single-point color correction
• supports single-card color space conversion
• Support configuration file readback
• support program to copy
• hot backup support dual receiver card for demanding performances Screen
• support pixel fault detection (to be supported by a dedicated chip)
• Support the network cable BERT
• Support for cable fault detection
• support cabinet door switch monitoring
• Two fan speed monitoring
• three-way voltage monitor, all the way for the system, two external power supply box
• temperature monitoring
• Humidity Monitor (need humidity sensor)
• Smoke Monitor (need smoke module)
• CE-EMC standards in line with EU

• 12 pcs HUB75 of 16P interface,Hub card is no need anymore.
• support 12-bit color HDMI inputs (need to send cards with nine generations)
• using 18 signal processors, maximum support RGB each 18 (260,000) gray
• single card maximum support 1024X256 pixels, 1,024 single-point color correction
• supports single-card color space conversion
• Support configuration file readback
• support program to copy
• hot backup support dual receiver card for demanding performances Screen
• support pixel fault detection (to be supported by a dedicated chip)
• Support the network cable BERT
• Support for cable fault detection
• support cabinet door switch monitoring
• Two fan speed monitoring
• three-way voltage monitor, all the way for the system, two external power supply box
• temperature monitoring
• Humidity Monitor (need humidity sensor)
• Smoke Monitor (need smoke module)
• CE-EMC standards in line with EU

• 12 pcs HUB75 of 16P interface,Hub card is no need anymore.
• support 12-bit color HDMI inputs (need to send cards with nine generations)
• using 18 signal processors, maximum support RGB each 18 (260,000) gray
• single card maximum support 1024X256 pixels, 1,024 single-point color correction
• supports single-card color space conversion
• Support configuration file readback
• support program to copy
• hot backup support dual receiver card for demanding performances Screen
• support pixel fault detection (to be supported by a dedicated chip)
• Support the network cable BERT
• Support for cable fault detection
• support cabinet door switch monitoring
• Two fan speed monitoring
• three-way voltage monitor, all the way for the system, two external power supply box
• temperature monitoring
• Humidity Monitor (need humidity sensor)
• Smoke Monitor (need smoke module)
• CE-EMC standards in line with EU

Linsn EX90 2 Multi Function LED Card adjust the brightness automatically

EX90 2 Features: Linsn EX90 2 D Multi Function LED Card adjust the brightness automatically,EX90 2 LED Card for led screen power on/off

• Integrated audio signal transmission, no external audio amplifier line, direct access function card;
• 256 grade automatic brightness adjustment;
• Monitoring led screen temperature and humidity in Real-time ;
• Displaying the current temperature and humidity on led screen;
• Smoke detection,(need to install the smoke probe);
• Power On/Off the power of led screen remotely;
• Control the led screen's fan and air-conditioning switcher automatically through the temperature

Compatible with all LINSN 8xx and 9xx series sending cards.

1.901 Sending card including: TS901 (Full color) and DS901 (Double color)
2.Full color Linsn SD901 sending card supports full color, double color and single color led screen
3.901 sending card max support 2048*640, and support customized resolution
4.Support configuration file (.RCG) broadcasting function
5.Replacing receiving card without resending .RCG file
6.Support display connection file (.CON) broadcasting function
7.Replacing receiving card without resending .CON file
8.Support zoom in/out
9.Can put whole computer LCD monitor content on LED screen with zoom in/out function

SD901 LED Sending Card is the latest Version of Linsn LED Sending card, can work with any RV8XX and RV9XX receiver card.
This is special PCI Express Version
Power have to be delivered by 4 pin molex.

1.One DVI video signal input
2.Get signal from DVD player or media player, no intermediate device needed
3.One Audio signal input
4.Two network outputs; single port maximum support 655360 pixels
5.Support adjusting brightness manually (require working with outer box)a3bb three scales can be set:16-grade, 32-grade and
64-grade
6.Support 60Hz and 30Hz output mode

60Hz modea3a8 using two portsa3a9 :
2048 * 640 / 1920 * 672 / 1792 * 720 / 1600 * 800 / 1472 * 880 / 1344 * 960 / 1280 * 1024 / 1024 * 1280a3a8 require
supporting by graphics carda3a9 / 832 * 1280a3a8 require supporting by graphics card a3a9 / 640 * 1280 a3a8 require supporting by
graphics card a3a9
30Hz modea3a8 using two portsa3a9 :
4032 * 512 / 3840 * 544 / 3584 * 576 / 3392 * 608 / 3200 * 640 / 3072 * 672 / 2880 * 704 / 2560 * 800 / 2368 *864 / 2048 * 1024

1.901 Sending card including: TS901 (Full color) and DS901 (Double color)
2.Full color Linsn SD901 sending card supports full color, double color and single color led screen
3.901 sending card max support 2048*640, and support customized resolution
4.Support configuration file (.RCG) broadcasting function
5.Replacing receiving card without resending .RCG file
6.Support display connection file (.CON) broadcasting function
7.Replacing receiving card without resending .CON file
8.Support zoom in/out
9.Can put whole computer LCD monitor content on LED screen with zoom in/out function

SD901 LED Sending Card is the latest Version of Linsn LED Sending card, can work with any RV8XX and RV9XX receiver card.
1.One DVI video signal input
2.Get signal from DVD player or media player, no intermediate device needed
3.One Audio signal input
4.Two network outputs; single port maximum support 655360 pixels
5.Support adjusting brightness manually (require working with outer box)a3bb three scales can be set:16-grade, 32-grade and
64-grade
6.Support 60Hz and 30Hz output mode

60Hz modea3a8 using two portsa3a9 :
2048 * 640 / 1920 * 672 / 1792 * 720 / 1600 * 800 / 1472 * 880 / 1344 * 960 / 1280 * 1024 / 1024 * 1280a3a8 require
supporting by graphics carda3a9 / 832 * 1280a3a8 require supporting by graphics card a3a9 / 640 * 1280 a3a8 require supporting by
graphics card a3a9
30Hz modea3a8 using two portsa3a9 :
4032 * 512 / 3840 * 544 / 3584 * 576 / 3392 * 608 / 3200 * 640 / 3072 * 672 / 2880 * 704 / 2560 * 800 / 2368 *864 / 2048 * 1024

PCI Sending Card TS802 for LINSN LED WALL System
DVI to Digital Video-LAN LINSN incl. cable max. 1280 x 1024
PC can be INTEL, Minimum Pentium 4, 512MB RAM 10GB Harddisk, 1 free PCI Slot, 1 free USB 2.0 Port
Graphics card can be NVIDIA, ATI or similar card.
incl Software LED Studio

Linsn Receive Card Matching to the LINSN Series 8 Control Systems

For other models please contact us. We can also realize the compatibility with other cards via firmware.

different Version RV801A, RV801D, RV801F etc .

cards can be refurbished - new not available any longer !

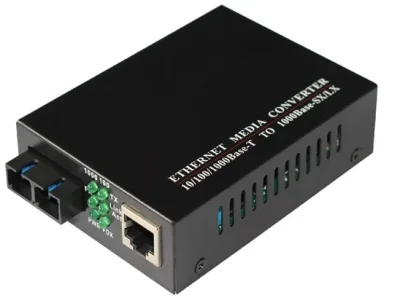

Including both of Fiber Sender and Fiber Recevier,Communicating Distance: 10-20Km.
-> for complete System you need to order 2 pcs of this product !

System Overview:

The introduction of long-distance optical fiber transmission system, fiber optic transmission of this technology, the LED display
control signal can be transmitted to longer distances, to ensure the integrity of the signal so that the whole LED display system
more stable, reliable and convenient.

Linsn LED Fiber Convertor Features:

1.gigabit transmission is standard physical layer technologies.
2.single-mode fiber transmission distance up to 20KM, multi-mode fiber up to 500M.
3.large load force, master control system for the 2048 x 1536, can cascade, cascading multiple screens can be used in the same
format of a system support.
4.led sender can support multiple led receiver (that is, any multi-block display, split screen).
5.Perfect picture, red and green can be independently any correction, any brightness adjustment.
6.indoor and outdoor-compatible set of cards can be 1/16, 1/8, 1/4, 1/2, and static scanning.
7.it can be remotely switch the big screen, the display brightness can be adjusted automatically.
8.Transmission Card transmission part adopts electromagnetic isolation technology, support hot plug.
9.high-bandwidth transmission bandwidth of up to GB level and above.
10.master card reliability, versatility, excellent on-screen circuits are no special requirements.

Including both of Fiber Sender and Fiber Recevier,Communicating Distance: 500m.
-> for complete System you need to order 2 pcs of this product !

System Overview:

The introduction of long-distance optical fiber transmission system, fiber optic transmission of this technology, the LED display
control signal can be transmitted to longer distances, to ensure the integrity of the signal so that the whole LED display system
more stable, reliable and convenient.

Linsn LED Fiber Convertor Features:

1.gigabit transmission is standard physical layer technologies.
2.single-mode fiber transmission distance up to 20KM, multi-mode fiber up to 500M.
3.large load force, master control system for the 2048 x 1536, can cascade, cascading multiple screens can be used in the same
format of a system support.
4.led sender can support multiple led receiver (that is, any multi-block display, split screen).
5.Perfect picture, red and green can be independently any correction, any brightness adjustment.
6.indoor and outdoor-compatible set of cards can be 1/16, 1/8, 1/4, 1/2, and static scanning.
7.it can be remotely switch the big screen, the display brightness can be adjusted automatically.
8.Transmission Card transmission part adopts electromagnetic isolation technology, support hot plug.
9.high-bandwidth transmission bandwidth of up to GB level and above.
10.master card reliability, versatility, excellent on-screen circuits are no special requirements.

• 852 sending card including full-color sending card TS852 and dual-color sending card DS852.
• Full-color sending card supports full-color, dual-color and single color led display
• Dual-color sending card supports dual-color and single color led display.
• 852 sending card max supports 2048*640
• Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900 1440*1080 1600*1200 1680*1050 1728*1296 1920*1080 1920*1200 2048*1152 2048*1280
• Audio Transmission Function
• 8 5 2 sending card sends audio data using network cable, and Function board outputs audio signals to the display.
• Cascade function
• Through the dig switch on 802 sending card, several 802 sending cards can be easily cascaded to support a super large led display
• Sending card U/D port flexibility for carrying half width or half height
• Sending card rotation function
• Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900 1440*1080 1600*1200 1680*1050 1728*1296 1920*1080 1920*1200 2048*1152 2048*1280
• Sending card zoom in/out function
• In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out
• Supporting 10-bit colors
• The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.
• The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.
• Multi-display synchronous and combination functions.
• One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play

PCI Sending Card for LINSN systems
DVI to Digital Video LAN LINSN including cable max. 1280x1024

Latest model including the possibility to read back data from the reception cards of the V9.
Compatible to all version 9 card and Version 8 . Latest LINSN control software included!

PCI Sending Card for LINSN systems
DVI to Digital Video LAN LINSN including cable max. 1280x1024

Latest model including the possibility to read back data from the reception cards of the V9.
Compatible to all version 9 card and Version 8 . Latest LINSN control software included!

LINSN TS801 Sending card for PCI Slot
• 801 sending card including full-color sending card TS801 and dual-color sending card DS801.
• Full-color sending card supports full-color, dual-color and single color led display
• Dual-color sending card supports dual-color and single color led display.
• 801 sending card max supports 1280*1024
• Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024
• Sending card U/D port flexibility for carrying half width or half height
• For example, TS801 can max support 1280*1024 with two ports
• single network output port supports 1280*512 or 640*1024
• Sending card rotation function 0, 90, 180, 270 degree
• Sending card zoom in/out function
• In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out
• Supporting 10-bit colors
• seventh series receiving supports 8-bit colors: 256*256*256=16777216 kinds of colors.
• eighth series receiving supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors.
• It needs to work with our video processors using the 30 bits TTL.
• Multi-display synchronous and combination functions.
• One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.

Linsn RV902 receiver card

Description of Linsn RV902
RV902is the upgrade product for RV802 fully compatible with RV802, supports all features of RV802.

Compared with the RV802 to add the following features
1. supports HDMI 12 bit color input (need the sending cards TS901)
2. a 18-bit signal processing, maximum 18-bit (260,000) gray for red, green and blue
3. single card maximum support 1024X256 pixels, 1024-level single point of color correction
4. supporting single card color space conversion
5. support RCG file read-back
6. support program copy
7. support hot backup for dual receiver card, used for very more performance LED screen
8. support fault detection supports pixel (IC support required)
9. supports the network cable error test
10. supports the ribbon cable fault detection
11. supports the cabinet door monitoring
12. two fan speed monitoring
13. three-way voltage monitoring, system, two-way external enclosure power supply
14. temperature monitor
15. humidity control (to be purchased separately and humidity sensor)
16. smoke monitoring (to be purchased separately smoke module)
17. Passed the EU CE-EMC standards
