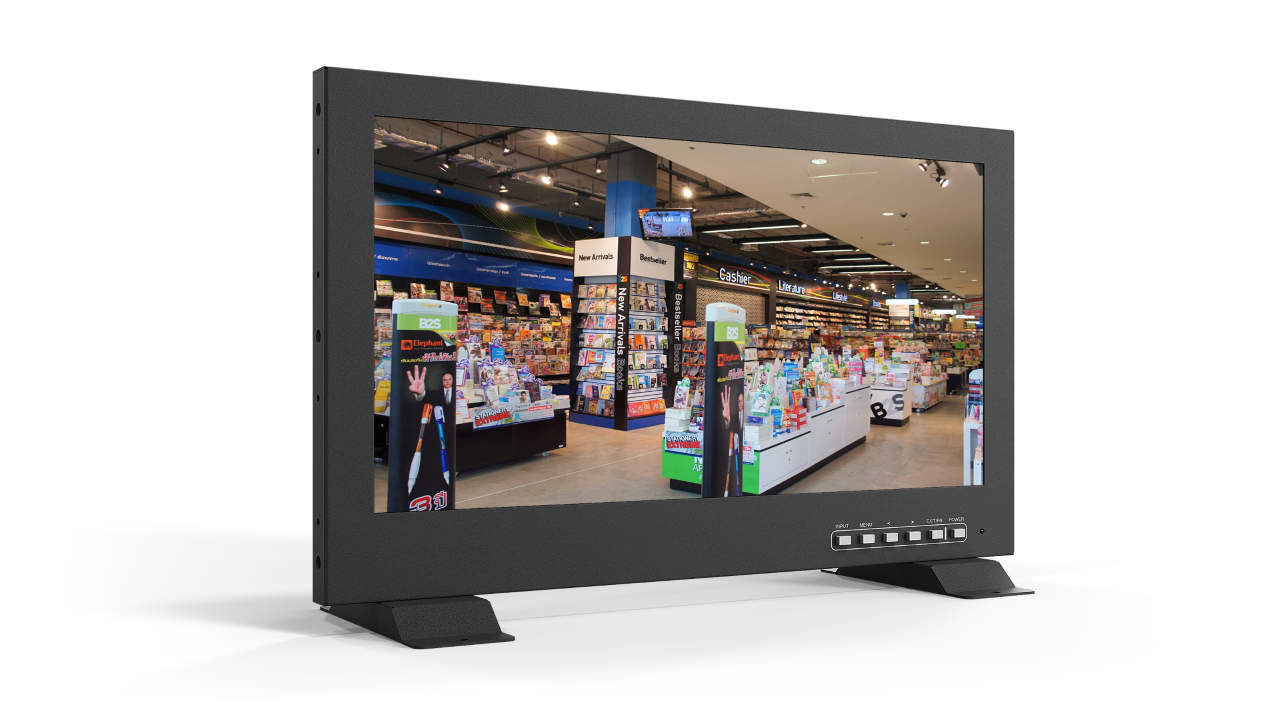

Lilliput 15.6 Zoll CCTV Monitor PVM150S

Lilliput PVM150S Technical Datasheet

Technical Specifications:

· Screen Size: 39.7 cm (15.6 inches)

· Resolution: 1920 x 1080 pixels (Full HD)

· Color Depth: 8-bit FRC (providing better-than-10-bit representation)

· Brightness: 1000 cd/m² (High brightness for outdoor use)

· Contrast Ratio: 1000:1 (Clear and sharp image quality)

· Viewing Angle: 178° horizontal, 178° vertical (Wide angle for consistent image from any direction)

Power Specifications:

· Operating Voltage: 10 to 24V (Wide voltage input range for various setups)

· Power Consumption: Max 24W (Energy-efficient performance)

Inputs & Outputs:

· Inputs:

o 1 x HD-SDI (for professional video use)

o 1 x HDMI (supports up to 4K/30)

o 1 x VGA (for legacy devices)

o 1 x AV (Composite video input)

· Outputs:

o 1 x HD-SDI (loop-through output)

o 1 x Headphone Output (3.5mm jack for audio monitoring)

Physical Specifications:

· Weight: Approximately 2.87 kg (Lightweight for easy transport)

· Dimensions: 389 mm x 260 mm x 37.6 mm (Compact design for space-saving installation)

Key Features:

· High Brightness of 1000 cd/m² makes the Lilliput PVM150S ideal for both indoor and outdoor applications.

· Supports a wide range of inputs and outputs, making it versatile for various security, CCTV, and broadcasting setups.

· The 178° viewing angle ensures a consistent, vibrant image from multiple angles.

· Power-efficient design with low energy consumption for cost-effective operation.

The Lilliput PVM150S is built for high-demand professional environments, offering exceptional performance and flexibility. Whether you're using it for CCTV surveillance, event
