Lilliput 15.6 Zoll CCTV Monitor PVM150S-FC with Case
High brightness CCTV Monitor 1000 Nits SDI HDMI VGA and Video with flightcase
Special price: 700.91 €
incl. VAT
( Instead of 782.15 )
589.00 € w/o VAT
in germany stock
Shipping cost
Artikelnummer: 12281 Hersteller-Nummer: PVM150S-FC
Lilliput PVM150S - 15.6 Inch CCTV Monitor with Full HD and High Brightness, Including Flightcase and Rackmount
The Lilliput PVM150S is an advanced 15.6-inch CCTV monitor that delivers impressive Full HD resolution (1920x1080 pixels) and an incredible brightness of 1000 nits, ensuring excellent image quality even in extremely bright environments. Supporting HDMI resolutions up to 4K/30 and HDR, the monitor offers outstanding visual performance, making it ideal for both professional security applications and outdoor use.

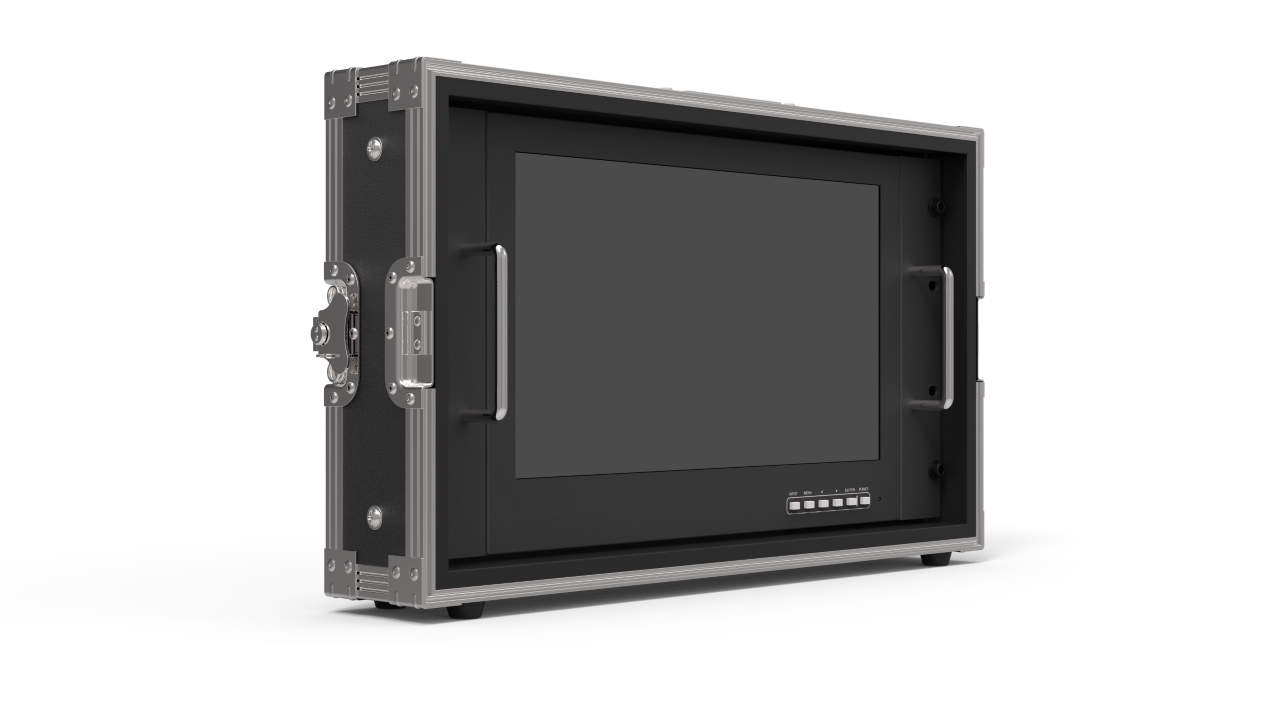

Complete Set with Flightcase, Rackmount, and Sunshade
The Lilliput PVM150S comes as part of a complete set that includes a protective flightcase with front and rear covers for safe transport and storage. Rackmount rails and a sunshade are also included, making the monitor highly versatile and rugged for outdoor use. It is especially well-suited for applications like fawn tracking, where high brightness and clear image quality are essential.
Rugged Design for Versatile Applications
With a maximum brightness of 1000 nits, the Lilliput PVM150S is perfect for outdoor use, offering excellent visibility even in bright sunlight. The 178-degree viewing angle ensures the image is clearly visible from nearly any angle, making it ideal for event technology and open-air events. By omitting unnecessary features and expensive HDMI components, the monitor is affordable while still offering excellent performance and flexibility.
Multiple Input Options for Professional Use
The Lilliput PVM150S offers a wide range of input options, including HDMI (up to 4K/30), SDI, VGA, and FBAS, allowing for easy integration into CCTV surveillance systems, broadcast setups, or other professional applications. The SDI loop-through output also enables simple signal pass-through.
Exceptional Image Quality with IPS Technology
Thanks to IPS technology, colors and contrasts are accurately and vividly displayed, regardless of the viewing angle. This ensures excellent image quality that remains visible from any perspective, in any environment.
Included in the Box:
· Lilliput PVM150S Monitor
· Flightcase with front and rear covers
· Rackmount rails
· Desktop feet for use as a desktop monitor
· Power supply and power cable
· User manual
Additional Features:
· Headphone output (3.5mm) for audio monitoring
· VESA 100x100 mounting holes for wall mounting
· Wide voltage range (10-24V) for flexible application
· Image flip function (H/V/H+V adjustable) for teleprompter use
Lilliput Service Partner - Spare Parts Available
As an official Lilliput service partner, we provide quick support and stock many spare parts, ensuring you can get back up and running fast whenever needed.
Conclusion:
The Lilliput PVM150S is the ideal monitor for professional CCTV surveillance, security monitoring, broadcast, and outdoor events. With its high brightness, rugged design, and comprehensive accessories, it delivers exceptional performance at a competitive price.
techn. Specs▲
Lilliput PVM150S Technical Datasheet
Display Specifications:
· Screen Size: 39.7 cm (15.6 inches)
· Resolution: 1920 x 1080 pixels (Full HD)
· Screen Type: Semi-gloss finish
· Color Depth: 8-bit FRC (providing better-than-10-bit representation)
· Brightness: 1000 cd/m² (high brightness for clear visibility even in bright environments)
· Contrast Ratio: 1000:1
· Viewing Angle: 178° horizontal, 178° vertical (wide viewing angle for consistent image quality from any angle)
Power Specifications:
· Operating Voltage: 10 to 24V (wide voltage input range for flexibility)
· Power Consumption: Max 24W (energy-efficient performance)
Input/Output Specifications:
· Inputs:
o 1 x HD-SDI (for professional video use)
o 1 x HDMI (supports up to 4K/30)
o 1 x VGA (for legacy devices)
o 1 x AV (Composite video input)
· Outputs:
o 1 x HD-SDI (loop-through output)
o 1 x Headphone Output (3.5mm jack for audio monitoring)
Physical Specifications:
· Weight (without flightcase): Approx. 2.87 kg
· Dimensions (without flightcase): 389 x 260 x 37.6 mm
· Dimensions (with flightcase): 540 x 320 x 180 mm
Key Features:
· High Brightness of 1000 cd/m²: Ideal for outdoor and challenging lighting conditions.
· Wide Viewing Angle (178°): Provides clear and accurate image reproduction from any angle.
· Flexible Power Input (10-24V): Allows for use in a variety of professional setups.
· Multiple Inputs: HDMI, SDI, VGA, and AV for versatile connectivity in CCTV and broadcast applications.
· Compact Design: Suitable for desktop use, rackmount installations, or mounting with VESA-compatible brackets.
· Headphone Output: For convenient audio monitoring via 3.5mm jack.
Included in the Box:
· Lilliput PVM150S Monitor
· Flightcase with sunhood
· Power supply and power cable
· Desktop feet for use as a standalone monitor
· User manual
The Lilliput PVM150S is a high-performance, versatile monitor designed for professional video, CCTV, and broadcast use. With its wide range of input options, high brightness, and flexible power capabilities, this monitor delivers outstanding performance in various environments.
