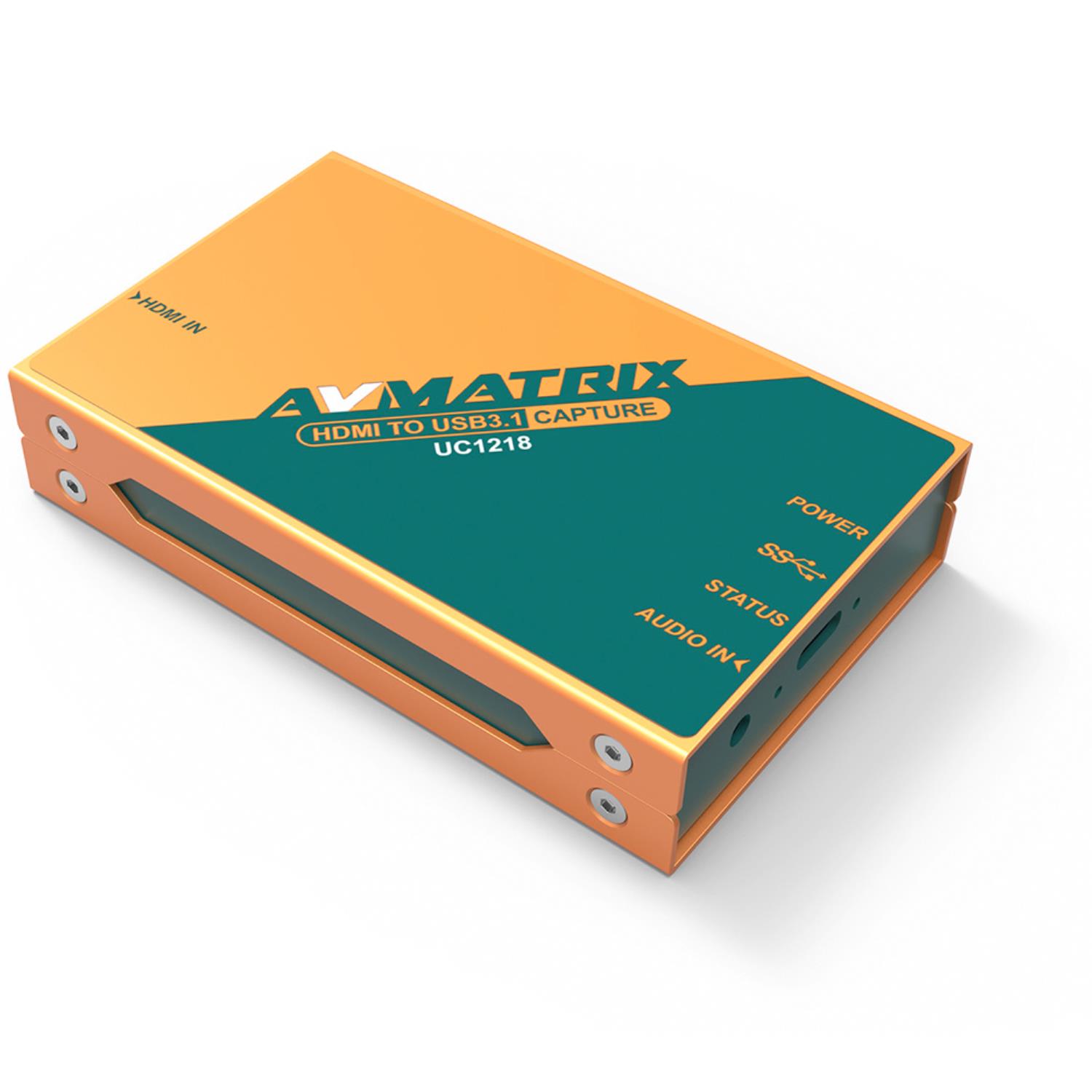

AVMatrix UC1218 HDMI to USB 3.1 Video Capture
Plug & Play capture without driver installation
article number: 12296 | manufacturer number: UC1218R | EAN/UPC: 6971118000227
The AVMatrix UC1218 is a compact HDMI to USB 3.1 Gen 1 video capture converter for live streaming, video conferencing, recording and professional AV applications. It converts an HDMI video signal into a UVC-compliant USB signal and can therefore be detected directly by compatible software without any additional driver installation.
The UC1218 supports HDMI input signals up to 1080p60 and outputs the video signal via USB 3.1 Gen 1. Thanks to UVC and UAC support, the converter is suitable for common applications such as OBS, Zoom, Microsoft Teams, YouTube, Twitch and other streaming or conferencing software.
The capture converter operates driver-free according to the UVC standard and requires no external power supply. Power is supplied via USB, making the UC1218 particularly easy to integrate into mobile setups, streaming workstations, training rooms, conference systems or small production environments.
The HDMI 1.4a input automatically detects input signals and supports video formats up to 1080p60. The signal is transmitted via USB 3.1 Gen 1 at an uncompressed data rate of up to 200 MB/s. Video output is UVC-compliant with YUY2, allowing the UC1218 to be used by many applications as a USB camera.
The AVMatrix UC1218 can take audio from the embedded HDMI signal or process it via the additional 3.5 mm stereo line input. Audio output is UAC-compliant via USB. This makes it easy to integrate camera audio, mixer signals or other line sources into streaming and conferencing applications.

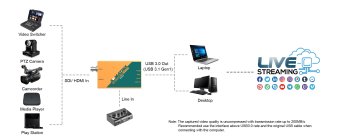

- HDMI capture for live streaming
- video recording via OBS or similar software
- integration of cameras into Zoom, Microsoft Teams and conference systems
- streaming to YouTube, Twitch or other platforms
- training sessions, webinars, online teaching and presentations
- mobile AV setups without additional power supply
- using professional HDMI sources as a USB camera signal
- HDMI to USB 3.1 Gen 1 video capture converter
- Plug & Play operation without driver installation
- no external power supply required
- 1 × HDMI 1.4a input
- 1 × 3.5 mm stereo audio input / line-in
- 1 × USB 3.0 Type-C output, USB 3.1 Gen 1
- automatic input signal detection up to 1080p60
- uncompressed transmission at up to 200 MB/s
- UVC-compliant video capture with YUY2 video output
- UAC-compliant audio output via USB
- audio via HDMI embedded audio or line-in
- compatible with Windows, Linux and macOS
- suitable for OBS, Zoom, Microsoft Teams, YouTube, Twitch and other applications
- compact form factor for mobile and stationary setups
Real product can look different to picture
techn. Specs▲

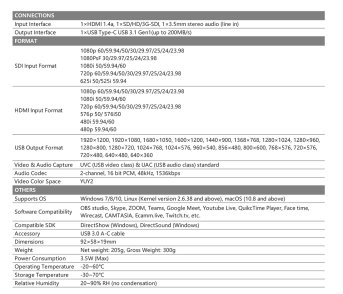

Specifications AVMatrix UC1218
| Connections | |
| Inputs | 1 × HDMI 1.4a, 1 × 3.5 mm Stereo Audio (Line In) |
|---|---|
| Outputs | 1 × USB Type C (USB 3.1 Gen 1, up to 200 MB/s) |
| Video Formats | |
| HDMI Input | 1080p60/59.94/50/30/29.97/25/24/23.98, 1080i50/59.94/60, 720p60/59.94/50/30/29.97/25/24/23.98, 576p50/576i50, 480i59.94/60, 480p59.94/60 |
| USB Output | 1920 × 1200, 1920 × 1080, 1680 × 1050, 1600 × 1200, 1440 × 900, 1368 × 768, 1280 × 1024, 1280 × 960, 1280 × 800, 1280 × 720, 1024 × 768, 1024 × 576, 960 × 540, 856 × 480, 800 × 600, 768 × 576, 720 × 576, 720 × 480, 640 × 480, 640 × 360 |
| Video & Audio | |
| Capture Standard | UVC (USB Video Class) & UAC (USB Audio Class) |
| Audio Format | 2-channel PCM, 16 bit, 48 kHz, 1536 kbps |
| Color Space | YUY2 |
| System | |
| Supported Operating Systems | Windows 7/8/10, Linux (Kernel 2.6.38 or higher), macOS (10.8 or later) |
| Software Compatibility | OBS Studio, Skype, Zoom, Microsoft Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime, Wirecast, Camtasia, Ecamm.live, Twitch and others |
| SDK Support | DirectShow, DirectSound (Windows) |
| General | |
| Dimensions (W × H × D) | 92 × 19 × 58 mm |
| Weight | 205 g (net), 300 g (gross) |
| Power Consumption | max. 3.5 W |
| Environment | |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -30 °C to +70 °C |
| Humidity | 20–90 % RH (non-condensing) |
| Scope of Delivery | |
| Accessories | USB 3.0 A-to-C Cable |
Questions & Answers▲
Does the AVMatrix UC1218 require driver installation?
No driver installation is required. The UC1218 is UVC and UAC compliant, meaning it is automatically recognized by compatible operating systems and applications as soon as it is connected via USB.
What is the maximum supported video resolution and frame rate?
The HDMI input supports video signals up to 1080p at 60 frames per second. The signal is then transmitted via USB 3.1 Gen 1 at an uncompressed data rate of up to 200 MB/s.
Which software applications are compatible with this capture device?
Due to its UVC compliance, the device works with a wide range of software including OBS, Zoom, Microsoft Teams, YouTube Live, Twitch and other streaming or video conferencing applications that support USB cameras.
Does the UC1218 need an external power supply?
No external power supply is needed. The device is powered entirely through the USB connection, which makes it straightforward to use in mobile setups, streaming workstations or conference rooms without additional cabling.
What audio input options does the UC1218 offer?
Audio can be captured either from the embedded HDMI signal or through the dedicated 3.5 mm stereo line input on the device. This allows integration of camera audio, mixer outputs or other line-level sources into streaming and conferencing software.
How is audio transmitted to the computer?
Audio is output via USB in a UAC-compliant format, so the device is recognized as a standard USB audio source without any additional configuration or driver installation required.
What video color format does the USB output use?
The USB video output uses the YUY2 color format in a UVC-compliant stream. This format is widely supported by streaming, recording and conferencing applications.
Which HDMI version does the input support?
The device features an HDMI 1.4a input, which automatically detects the incoming signal and supports video formats up to 1080p60.
Can the UC1218 be used with cameras that output HDMI?
Yes. Any camera or device with a standard HDMI output can be connected to the UC1218, allowing the video and audio signal to be captured and used in streaming, recording or conferencing applications.
Is the device suitable for use in conference and training room environments?
Yes. The bus-powered design and plug-and-play operation make it well suited for permanent installations in conference rooms, training rooms and other professional AV environments where simple integration and minimal cabling are important.
What USB standard does the device use for the connection to the computer?
The device connects to the host computer via USB 3.1 Gen 1, which provides sufficient bandwidth for uncompressed video transmission at the supported resolutions and frame rates.
Can the UC1218 be used for professional AV production environments?
The UC1218 is designed for a range of applications including live streaming, video recording, video conferencing and small-scale professional AV production setups where an HDMI source needs to be captured into a computer.
